Railway Power

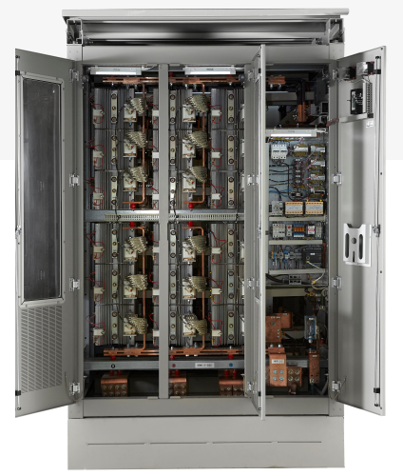

Rectifier

Rectifiers used in DC railways receive three-phase AC power and convert it into DC power through switching elements and control circuits. They are now finding expanded applications across various other fields. Our company manufactures highly reliable rectifiers, which have been supplied to major projects and are recognized for their excellence.
  • Key Features

    - Highly Reliable and Compact Rectifier
    - Standardization of DC power supply for railways, subways, trams, etc.
    - Passed CESI Performance Test
  • Application

    - Urban Rail Transit, Light Rail, etc.
Product Specifications

 SJR750V  /  SJR1500V

Applicable Standards
IEC 60146-1-1/ IEC 62590
Type
SJR750V
SJR1500V
Rated Voltage
750V
1500V
Rated Capacity
0.9MW~6.0MW
0.9MW~7.0MW
Diode Type
Disc Method
Rectification Method
3-Phase Bridge
Frequency Withstand Voltage
10kV
Connection
Parallel
Operating Temperature
-5 ˚C ~ +40 ˚C
Protective Device

Ground Fault Protection, Fuse Failure Detection, Surge Protection, Heat-sink Temperature (Alarm/Trip)
