Electric Power Equipment

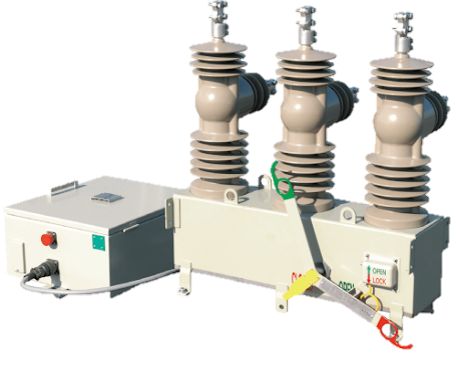

Eco Load Break Switch

This product is an electric power equipment installed on overhead distribution lines for the purpose of line segmentation and switching rated loads. It employs an epoxy insulation method and vacuum interrupter, making it environmentally friendly. Inside the housing, it contains built-in sensors capable of measuring voltage and current. It is an automatic load break switch that can be remotely controlled.
  • Key Features

    - Vacuum switching technology for internal insulation and switching operations
    - Phase separation structure to prevent phase-to-phase short circuit accidents
    - Spring toggle operating mechanism ensures consistent operating speed for both auto and manual operation
  • Application

    -Overhead Distribution Lines
Product Specifications

 SJECO-A-630

Applicable Standards
ES-5925-0004
Rated Voltage
25.8kV
Rated Current630A
Rated Frequency
60㎐
Rated Power Frequency Withstand Voltage
60kV / 1min
Rated Impulse Withstand Voltage
150kV
Rated Short-Time Current
12.5kA 1s
Rated Making Current
32.5kA
Switch Rating
E3 M2 C2
Pollution Class
E class
