Electric Power Equipment

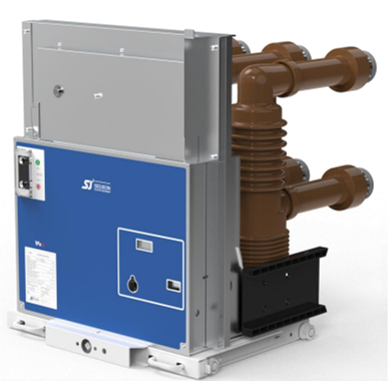

VCB

This device enhances stability by accommodating the Vacuum Interrupter (VI) within independently housed units for each phase. With 60% fewer parts than spring actuators, component failure and incorrect operation factors are reduced. Additionally, the PMA control circuit employs a Relay scheme, providing resilience against EMC and EMI.
  • Key Features

    -Highly reliable withdrawable circuit breaker
    -Unique Permanent Magnetic Actuator operating mechanism
    -Simple structure provides user convenience
  • Application

    -Built-in Distribution Board
Product Specifications

 SJVNP-20H-25/12

Applicable Standards
IEC62271-100
Rated Voltage
25.8kV
Rated Current
1250A
Rated Frequency
50/60㎐
Rated Power Frequency Withstand Voltage
60kV / 1min
Impulse Withstand Voltage
125kV
Rated Breaking Current
25kA
Rated Making Current
65kAPEAK
