Gas Insulated Switchgear (GIS)

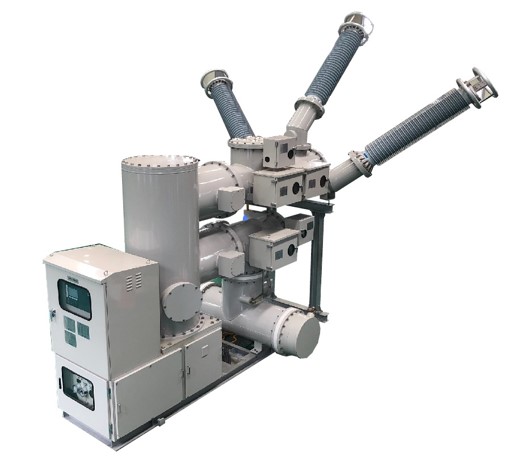

170kV GIS

The 170kV gas insulated switchgear by Seojeon Electric Machinery Corporation utilizes SF6 gas for reliable switching, insulation, and operation. Additionally, it is a superior product with excellent seismic design in accordance with KEPCO's seismic guidelines, ensuring reliability and stability.
  • Key Features

    - Ensuring Reliability and Stability
    - Reduced Installation Area
    - Reliability Ensured through Seismic Design Application
  • Application

    - Transformer Substation
Product Specifications

 SJS 1750

Applicable Standards
ES 6110-0002, IEC 62271-203
Rated Voltage
170 kV
Rated Current
2000 A
Rated Breaking Current
50 kA
Rated Frequency
60 Hz
Lightning Impulse Withstand Voltage
750 kV
Power Frequency Withstand Voltage
325 kV
Mechanical Rating
M2
Electrical Rating
E1
Low-current Switching Rating
C2
