Switchgear

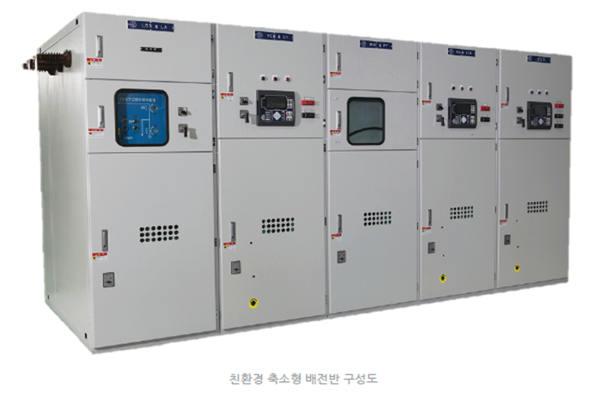

Environment Friendly Compact type Switchgears

This is an eco-friendly distribution board that applies a load break switch with compressed air arc extinguishing method and a solid-insulated vacuum circuit breaker with permanent magnetic actuator (PMA) inside a honeycomb-type housing to avoid the use of insulating gas that causes environmental pollution, and drastically reduces the size by up to 50% compared to existing products.
  • Key Features

    - Installation space is minimized by applying a compressed air arc-extinguishing method load break switch and side mount type VCB, with LBS panel width being 600mm.
    - Mechanical and electrical interlocks are applied between LBS, ES, and the door to ensure safety during maintenance.
  • Application

    - KEPCO & Power Generation Companies
    - Railroads & SOC
    - Buildings & Industrial Enterprises
Product Specifications

 SJE-A-R

Applicable Standards
IEC 62271-200
Rated Voltage
24kV
Rated Current
630A
Rated Short-Time Current
25kA/1sec
Lightning Impulse Withstand Voltage
125kV BIL
LBS Rating
24kV 630A
Insulation Performance Maintenance Device
220V 30W
