Switchgear

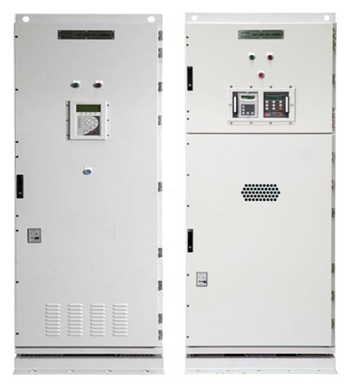

Asesmatic Switchgears
This product features a composite spring device (Chaos Elastic Mount), which combines patented and performance-certified strong earthquake-absorbing nonlinear wire ropes and polyurethane springs. Installed at the base of the switchboard, it enables stable operation of the switchboard even in earthquakes up to magnitude 8.3.
-
Key Features
- Seismic Rating Zone 4 (Richter scale 8.3) compliant (composite spring and polyurethane bar applied)
- Minimized deformation from micro-vibrations through multi-bending frame application -
Application
- KEPCO & Power Generation Companies
- Railroads & SOC
- Buildings & Industrial Enterprises
Product Specifications
SJP-HL-C
| Applicable Products | High Voltage Board/Low Voltage Board/MCC Board/Distribution Board | |
|---|---|---|
| Rated Voltage | Up to 25.8kV | |
| Rated Current | Up to 4000A | |
| Rated Short-Time Current | HV Up to 40kA/3sec | |
| LV Up to 85kA/1sec | ||
| Aseismicity | Standards | Telcordia GR-63-CORE |
| Grade | Zone 4 | |
| Testing Agency | Republic of Korea SGS | |
-
