Switchgear

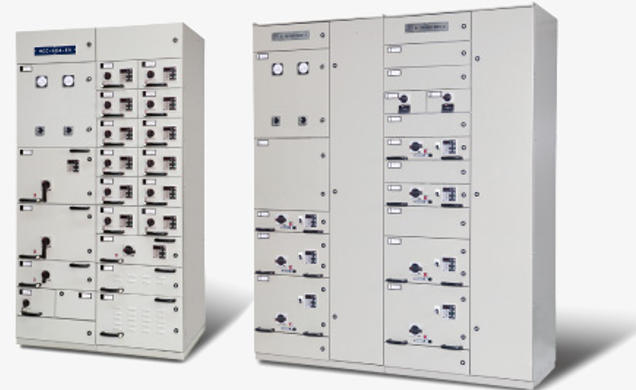

Low Voltage Motor Control Center (MCC)

Motor control panel by Seojeon Electric Machinery Corporation features a compact and safe design, incorporating a tertiary withdrawal structure that allows for simultaneous separation of primary and secondary power as well as the control line, making maintenance convenient.
  • Key Features

    - Convenient operation and maintenance with 3-tier withdrawal structure
    - Each of the three positions (operation/test/withdrawal) features a switch configuration.
    - Dramatically reduces the width of MCC panel with 1⁄2 Unit configuration.
  • Application

    - Industrial Plants
    - Various Buildings
    - Airports/Railroads
Product Specifications

 SMS-01A8540

Applicable Standards
IEC 61439-1&2
Rated Voltage480V
Rated Current
Main busbar ~ 4000A
Vertical busbar ~1200A
Rated Short-Time Current
85kA/1sec
Seismic Performance
Zone 4(리히터 규모 8.3)
Arc-Resistivity
85kA/0.5sec
Bulkhead Structure
Up to Form 4b
