Switchgear

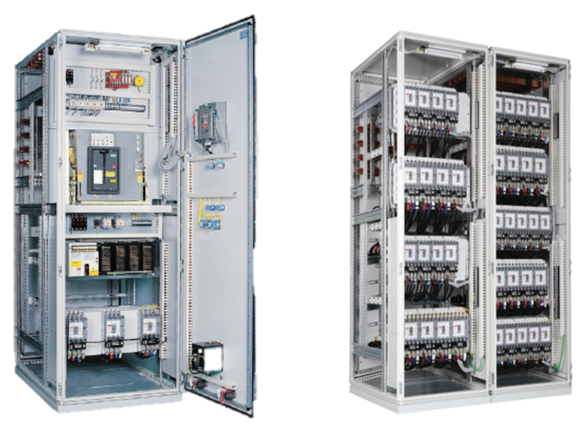

Low Voltage Module Switchgear
Low Voltage Module Switchgear by Seojeon Electric Machinery Corporation applies patented polygon busbar and multi-adapter technologies to dramatically improve capacity expansion, installation, By conforming to international standards IEC 61439-1&2, we offer high-performance, high-quality distribution boards that can be used across various industrial sectors.
-
Key Features
- Maximizes surface area by applying a polygon (Maxi) busbar system for high currents, making connections extremely easy
- The application of breaker configuration adapters facilitates the easy attachment and detachment of MCCBs, making capacity changes convenient. -
Application
- Industrial Plants
- Various Buildings
- Airports/Railroads
Product Specifications
SLS-01A8540
| Applicable Standards | IEC 61439-1&2 |
|---|---|
| Rated Voltage | 480V |
| Rated Current | Up to 4000A |
| Rated Short-Time Current | Up to 85kA/1sec |
| Seismic Performance | Zone 4(리히터 규모 8.3) |
| Arc-Resistivity | 85kA/0.5sec |
| Bulkhead Structure | Up to Form 4b |
-
