Switchgear

Medium Voltage Compact Switchgear

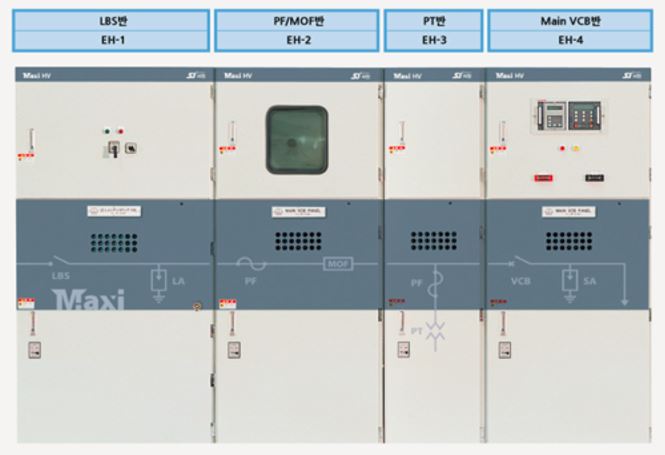

Compact Extra High Voltage Metal Clad Switchgear by Seojeon Electric Machinery Corporation is suitable for various customer environments through compactization and modularization, and various such as 4-face, 2-face and 1-face are possible depending on the installation space conditions. It is also equipped with various safety devices to ensure the safety of operators.
  • Key Features

    - Reduces installation area by up to 48% compared to conventional distribution panels
    - Compartmentalized structure that can separate and shield main busbars and devices
    - Ensuring operator safety by preventing door opening while the system is energized.
  • Application

    - KEPCO & Power Generation Companies
    - Railroads & SOC
    - Buildings & Industrial Enterprises
Product Specifications

 SJP-HL-A

Applicable Standards
IEC 62271-200
Rated Voltage
24kV
Rated Current
630A
Rated Short-Time Current
12.5kA/1sec
Rated Breaking Current
12.5kA
Rated Making Current
32.5kA peak
Lightning Impulse Withstand Voltage
125kV BIL
